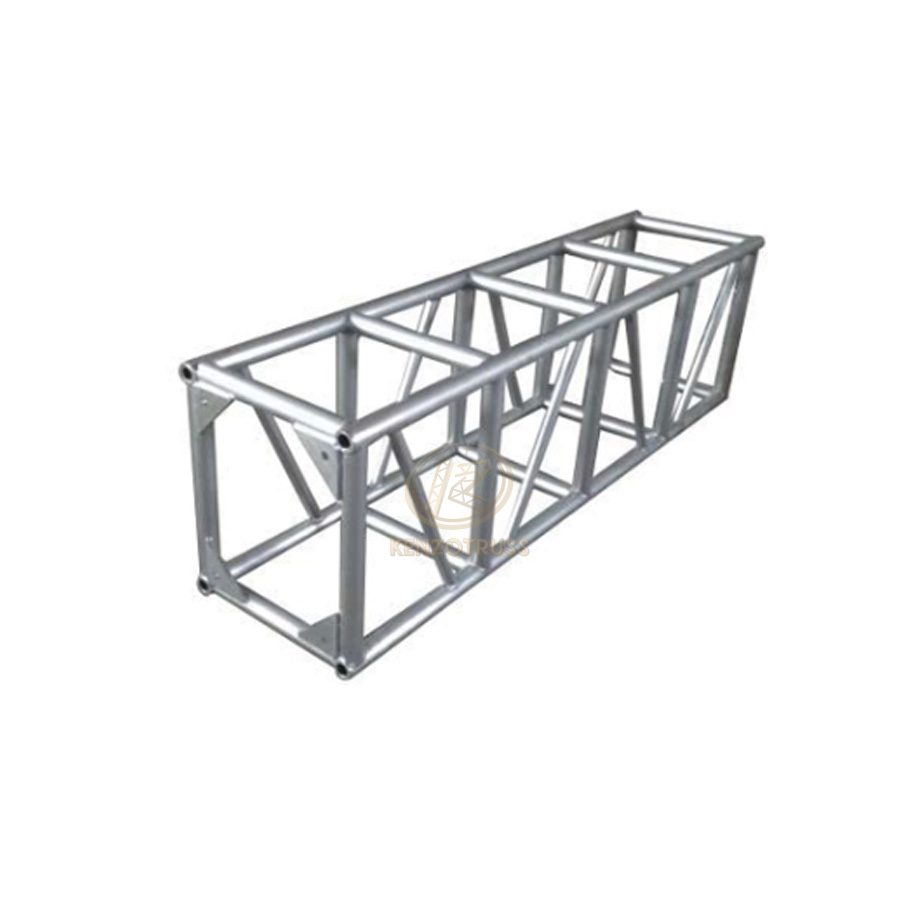

Product Name: KBS5060 Aluminum Bolt Truss

Truss Dimension    500*600mm

Main Tube             50*3mm

Vice Tube              50*3mm/50*2mm

Brace Tube            30*2mm


Description

Product Specification

KENZO Bolt Truss family of riangular and square truss have many uses-both illuminated and non illuminated; for example, trade show exhibits, retail displays, TV and movie sets, indoor/outdoor concerts, nightclubs and bars.


  • Material                    Quality aluminum alloy 6061-T6 (bolt truss)

  • Truss Connection     Screw

  • Length Optional       0.5m, 1m, 1.5m, 2m, 2.5m, 3m

  • Color                        Silvery white (colorful powder coated is available)

  • Usage                       Used for concert, events, performance, hang audio, speaker, lighting, led screen, etc.

  • Package                   Air bubble film and woven bag, or carton

  • Delivery Time           Usually 5-7 working days

  • Transport Type         By Sea, By Air, By Express



Load Capacity

Span (m)
Center Load (kg)
Observed Deflection (cm)
Distributed Load (kg)
Observed Deflection (cm)
2
1700
43000
3
4
158911
260411
6
1480
23
2276
28
8
121436178246
10
1083
50
1644
65
12
88166134085
14
755
83
1098
106
16
598
101
960
128
18
500
121
800
150
